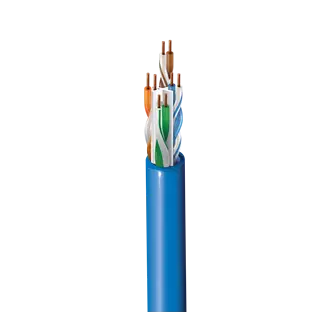

Category 6 Installation Cable – LSZH, 4 Pairs, with X-Spline® Separator
This high-quality horizontal and backbone cable is suitable for current and future Category 6 and 5e applications, such as 1000Base-T (Gigabit Ethernet), 100Base-T, 10Base-T, FDDI, and ATM.
Construction:
Conductor: 23 AWG, solid, bare copper (BC), 4 pairs
Insulation: Polyethylene (PE), diameter 0.96 mm, color code: White/Blue, White/Green, White/Orange, White/Brown
Cable Core: 4 twisted pairs with patented X-Spline® central separator
Outer Jacket: LSZH (Low Smoke Zero Halogen, flame retardant), Ø 5.4 mm
Electrical Characteristics:
Max. conductor resistance: 95 Ω/km
Capacitance: 56 pF/m
Characteristic impedance: 100 Ω
Delay skew: max. 40 ns/100 m
Frequency range up to 250 MHz, insertion loss and NEXT according to IEC 61156-5
Mechanical Characteristics:
Operating temperature: −30 °C to +60 °C
Installation temperature: 0 °C to +50 °C
Minimum bend radius: 23 mm (stationary), 46 mm (during installation)
Maximum pull tension: 80 N
Weight: 37 kg/km
Standards & Compliance:
Category 6 according to ANSI/TIA 568.2-D, ISO/IEC 11801-1
L
SZH according to IEC 62821-1, halogen-free according to IEC 60754-1/-2
Flame rating: IEC 60332-1-2, CPR Euroclass Eca
PoE support: IEEE 802.3bt Type 1–4
Key Advantages:
Halogen-free, low-smoke design for enhanced safety
Excellent electrical performance for Gigabit and future networks
X-Spline® separator for improved pair separation and signal quality
Available as a 305-meter cable roll
